The Vee Rib™ Wall system offers a range of benefits and features:
Features:
- Panel width: 36″
- Recessed ribs: 1-3/16″ deep, spaced 12″ on center
- Lengths: Available in lengths up to 48′, reducing the need for end laps and ensuring optimal wall integrity
- Embossed finish: The panels have an embossed surface that provides an attractive architectural finish
- Semi-concealed fasteners: The fastener locations are recessed, giving the panel a semi-concealed profile with bold architectural lines
- Florida and Miami-Dade County Approved: The system meets the standards and approvals required for construction in Florida and Miami-Dade County
- Variety of gauge thicknesses: Available in a variety of gauge thicknesses to meet different codes and specifications
- Engineered durability: The system is engineered for durability, ensuring long-term performance and structural integrity
- Superior paint finishes: The panels feature superior paint finishes that reduce maintenance costs and keep the wall looking good over time
Benefits:
- Aesthetically pleasing: The Vee Rib™ Wall system offers an attractive architectural appearance, enhancing the overall look of the building
- Long panel lengths: Longer panel lengths minimize the number of end laps, improving the integrity and aesthetics of the wall
- Reduced maintenance costs: The superior paint finishes used on the panels require less maintenance, saving on long-term costs
- Code compliance: The system meets most codes and specifications, providing confidence in its structural integrity and performance
- Approved for specific regions: The system is approved for use in Florida and Miami-Dade County, ensuring it meets the specific requirements of those areas
The Vee Rib™ Wall system combines aesthetic appeal with durability, making it a suitable choice for a variety of architectural and construction projects.

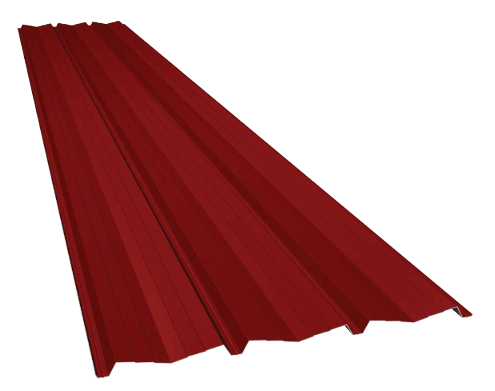

The Vee Rib wall system offers a distinctive sculptured look and provides a more architectural approach compared to concrete, masonry, or wood alternatives. Here are some key features and details:
- Panel material: Vee Rib wall panels are made from standard 26 gauge AZ50 steel, with an optional 24 gauge. This ensures durability and structural integrity.
- Panel dimensions: The panels are 36″ wide and feature a V-groove pattern that creates 1-3/16″ reveals. This design adds visual interest and depth to the wall system.
- Length options: Vee Rib panels are available in lengths up to 48′, allowing for continuous panel coverage from foundation to eave. This eliminates the need for endlaps and ensures wall integrity and weather resistance.
- Special base trim: The system includes special base trim designed for the foundation, ensuring a weathertight seal and further enhancing the overall performance of the wall.
- Attachment and fasteners: Vee Rib panels are attached using stainless steel capped self-drilling fasteners that are color-matched and semi-concealed in the bottom of the V-groove. This provides a clean and seamless appearance.
- Embossed surface: The panel surface is embossed, adding aesthetic appeal and reducing glare.
- Insulation options: Vee Rib can accommodate up to 6″ of blanket insulation or up to 2-1/2″ of rigid board insulation. This allows for enhanced energy efficiency and thermal performance.
- Color options: Vee Rib panels are available in a wide selection of standard colors with KXL finishes. The KXL paint system is a long-lasting PVDF finish applied to the zinc aluminum coated steel, offering resistance to fading and chalking. The KXL finish typically includes a 1 mil nom. PVDF coating with 70% Kynar® 500 or Hylar® 5000.
Overall, the Vee Rib wall system combines aesthetic appeal, durability, and energy efficiency, making it a versatile choice for architectural projects. The range of color options and insulation capabilities further enhance its versatility and performance.
