The ThermalClad Insulated Metal Wall Panels provide a lightweight and durable solution with superior insulating value. Here are the key features and benefits of these panels:
Features:
- Offset double tongue-and-groove side joint: The panels have an offset double tongue-and-groove side joint, which conceals the fastener head and clip, creating a flush appearance.

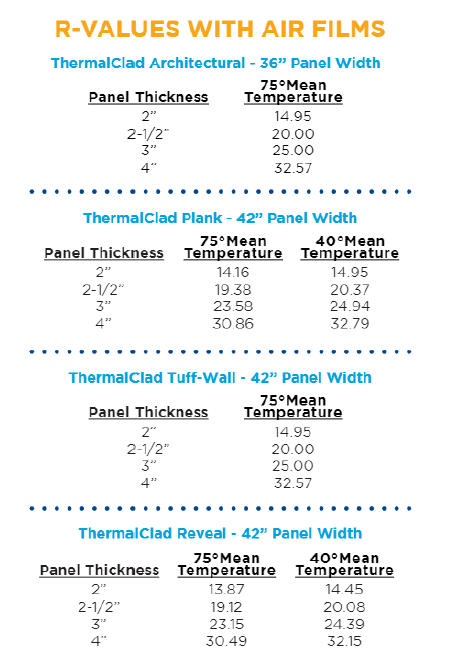

- R-values up to R-34.06: The panels offer high thermal resistance, with available R-values up to R-34.06, providing excellent insulation for energy efficiency.
- Various thicknesses and lengths: ThermalClad panels come in thicknesses of 2″, 2 1/2″, 3″, and 4″. The lengths range from 8′ to 53′ on 42″ wide panels, offering flexibility in design and installation.
- Factory-Mutual Class 1 approval: The panels have received Factory-Mutual Class 1 approval, ensuring their compliance with industry standards for fire resistance.
- Exterior embossed surface: Most variants of the ThermalClad panels feature an exterior embossed surface, providing aesthetic appeal and texture. However, the Tuff-Wall variant has a stucco-like appearance.
Benefits:
- Architectural versatility: The ThermalClad panels are available in different architectural styles to suit various design preferences. Options include Architectural, Shallow Plank, Tuff-Wall, and Reveal styles, each offering unique visual characteristics.
- Coverage and material options: The Architectural style offers 36″ coverage with lengths ranging from 8′ to 32′, using 22 ga. G-90 steel externally and 26 ga. internally as the standard. The Shallow Plank style provides 42″ coverage with 26 ga. G-90 steel externally and 26 ga. internally as the standard, with an optional 24 ga. external option. The Tuff-Wall style has a 42″ panel width with 24 ga. steel and standard lengths from 8′ to 40′. It also comes with a 10-year limited warranty and a durable finish resistant to impact and abrasion. The Reveal style offers 42″ coverage with 26 ga. G-90 steel externally and 26 ga. internally as the standard, with an optional 24 ga. external option.
- Enhanced energy efficiency: The ThermalClad panels provide insulation that helps maintain consistent temperatures inside the building, improving energy efficiency and reducing heating and cooling costs.
- Durability and warranty: The Tuff-Wall variant is designed to be highly durable, with a finish that is resistant to impacts and abrasions. It comes with a 10-year limited warranty, providing long-term performance and peace of mind.
- Aesthetically pleasing: The panels’ various styles and finishes offer options to achieve the desired aesthetic appearance, allowing for clean lines, bold reveals, or a stucco-like finish.
In summary, the ThermalClad Insulated Metal Wall Panels offer versatility, excellent insulation properties, durability, and aesthetic appeal. They are available in different styles, sizes, and finishes to suit architectural requirements while providing energy efficiency and long-term performance.
Architectural Wall Panels are specifically designed for high-profile projects that require a flush exterior wall appearance. Here are the key features and details of each panel variant:
1. Architectural Wall Panels:
- Panel width: 36″
- Available thicknesses: Four options with insulated core made from foamed in-place, blister-free, non-CFC polyurethane.
- Maximum panel length: 32′-0″
- These panels are designed to provide a flush exterior wall appearance, making them suitable for visually appealing projects.
2. ThermalClad Shallow Plank Panels:
- Panel width: 42″
- Panel material: Sturdy 26 gauge steel on both exterior and interior faces.
- Exterior panel design: Factory-formed with vertical lines, offering an attractive and durable finished wall.
- Ideal for commercial and industrial buildings, providing a clean and professional look.
3. Tuff-Wall™ Insulated Wall Panels:
- Panel width: 42″
- Panel material: Sturdy 26 gauge steel on both exterior and interior faces.
- Exterior surface: Textured with a hard aggregated fiber reinforced polymer coating created using the factory-applied Tuff-Cote™ finish system.
- Tuff-Cote finish: Offers exceptional durability, impact resistance, and abrasion resistance, making it suitable for harsh weather conditions.
- Provides a stucco-like appearance, enhancing the visual appeal of the building.
4. ThermalClad Reveal™ Panels:
- Panel width: 42″
- Panel material: Sturdy 26 gauge steel on both exterior and interior faces.
- Exterior face design: Factory-formed with bold vertical lines, creating an attractive and durable finished wall.
- Suitable for a wide range of commercial and industrial buildings, offering a visually appealing architectural solution.
Overall, Architectural Wall Panels, including the Shallow Plank, Tuff-Wall™, and Reveal™ variants, offer durable construction, attractive appearances, and design flexibility for high-profile projects.
